33 Kv Line Type Lightning Arrester / Transmission Line Surge Arrester

Product Categories

ZHEJIANG XINKOU POWER EQUIPMENT CO.,LTD

Contact Now

33 Kv Line Type Lightning Arrester / Transmission Line Surge Arrester

Brand Name : XK

Model Number : 33KV LA

Certification : ISO9001 / GB / IEC

Place of Origin : Zhejiang, China

MOQ : 500 - 1499 Pieces

Price : Negotiation

Supply Ability : 15000 Piece/Pieces per Month

Packaging Details : EXPORTING PACKAGE

Name : High Voltage Surge Arrester

Standard : GB11032-2000, IEC60099

Application : power distribution

Product name : lightning arrester

Product Keywords : zinc oxide surge lightning arrester

Port : NINGBO

Contact Now

XK 33 kv polymer lightning surge arrester

Hot Sale zinc oxide varistor

XK 33 kv polymer housed lighting surge arrester

Product Description

arrestors. It is supplied with a special current clip-on transformer designed for the measurement of current leakage.

On-line diagnostic of metal oxide surge arresters
According to IEC “Diagnostic indicators of metal-oxide surge arresters in service”
Third harmonic analysis of leakage current with compensation
Extensive field experience
Easy, fast and reliable diagnostic method
Safe lightweight equipment

Type	Rated voltage (kV)	MCOV (kV)	Residual voltage (KV)			2000ms square wave impulse current withstand	4/1OMS high current impulse (kV)
			Steep current impulse	switching current impulse	8/20 ms Lightning current impulse	2000ms square wave impulse current withstand	4/1OMS high current impulse (kV)
HY10W-3	3	2.55	9.5	7.7	9	100	100
HY10W-6	6	5.1	19.5	15.4	18	100	100
HY10W-9	9	7.65	28.5	23. 1	27	100	100
HY10W-10	10	8.4	36	30	23	250	150
HY10W-11	11	9.4	40	33	30	250	150
HY10W-12	12	10.2	38.0	30.8	36	200	100
HY10W-15	15	12.7	47.5	38.5	45	200	100
HY10W-18	18	15.3	57.0	46.2	54	200	100
HY10W-21	21	17.0	66.5	53.9	63	200	100
HY10W-24	24	19.2	76.0	61.6	72	200	100
HY10W-27	27	21.9	85.5	69.3	81	200	100
HY10W-30	30	24.2	95.0	76.5	90	200	100
HY10W-33	33	26.8	104.5	84.7	99	400	100
HY10W - 36	36	29	114.0	92.4	108	400	100
HY10W-42	42	34.1	132.3	100. 1	126	400	100
HY10W-48	48	39	152.0	126.0	150	400	100
HY10W-54	54	43	171.0	139.0	162	600	100
HY10W-60	60	48	208.0	160.0	180	600	100
HY10W-66	66	52.8	230.0	172.0	198	600	100

33 Kv Line Type Lightning Arrester / Transmission Line Surge Arrester

Company Information

33 Kv Line Type Lightning Arrester / Transmission Line Surge Arrester

FAQ

33 Kv Line Type Lightning Arrester / Transmission Line Surge Arrester

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.

Product Tags:

gapless type lightning arrester

line type lightning arrester

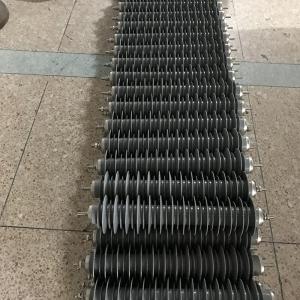

33 Kv Line Type Lightning Arrester / Transmission Line Surge Arrester Images
